The wood hammer mill adopts a hammer and screen system to efficiently crush wood chips, straw, waste paper, and coconut shells into uniformly sized sawdust and wood particles (3–8 mm).

Compared with traditional blade-type wood crushers, the hammer-type wood crusher is more versatile due to its hammering principle. It can handle a wider range of materials — including high-moisture, hard, or fibrous ones such as wood blocks, branches, bamboo, corn cobs, straw, and coconut shells. In contrast, conventional blade crushers are only suitable for dry materials like wooden boards, wood chips, and branches.

Shuliy offers seven models of wood hammer mill crushers, with capacities ranging from 800 kg/h to 5 tons/h, meeting the production needs of most wood processing factories.

Thanks to its durable quality and excellent crushing performance, Shuliy’s wood hammer mill has been well received by customers in many countries, including Brazil, Indonesia, Russia, Mexico, Tanzania, and the Arab region etc.

วิดีโอการทำงานของโรงสีค้อนไม้

ขายเครื่องโรงสีค้อนจาก Shuliy

เครื่องโรงสีค้อนไม้ของ Shuliy โดดเด่นด้วยความอเนกประสงค์ กำลังการผลิตสูง การควบคุมขนาดอนุภาคที่แม่นยำ และโครงสร้างที่แข็งแกร่ง เครื่องจักรนี้นำเสนอโซลูชันที่เชื่อถือได้และคุ้มค่าสำหรับการใช้งานในการประมวลผลต่างๆ โดยมีประสิทธิภาพด้านพลังงาน การบำรุงรักษาง่าย และเน้นไปที่ความปลอดภัย

ลูกค้ายังสามารถได้รับประโยชน์จากบริการหลังการขายและตัวเลือกการปรับแต่งที่ยอดเยี่ยมของ Shuliy ทำให้เป็นตัวเลือกที่เชื่อถือได้ในตลาดสำหรับเครื่องจักรโรงสีค้อน

เครื่องจักรโรงสีค้อนที่ทันสมัยของเราได้รับการออกแบบมาเพื่อตอบสนองทุกความต้องการในการแปรรูปไม้ของคุณ ต่อไป เรามาสำรวจวัตถุดิบต่างๆ ที่เครื่องจักรอันทรงพลังเหล่านี้สามารถจัดการได้

วัตถุดิบสำหรับเครื่องหั่นโรงสีค้อน

The hammer mill shredder can handle materials with high moisture content, hard texture, or strong fibers. It is capable of processing a wide range of raw materials—from wood and grains to charcoal and fibers—making it a highly sought-after machine for commercial applications.

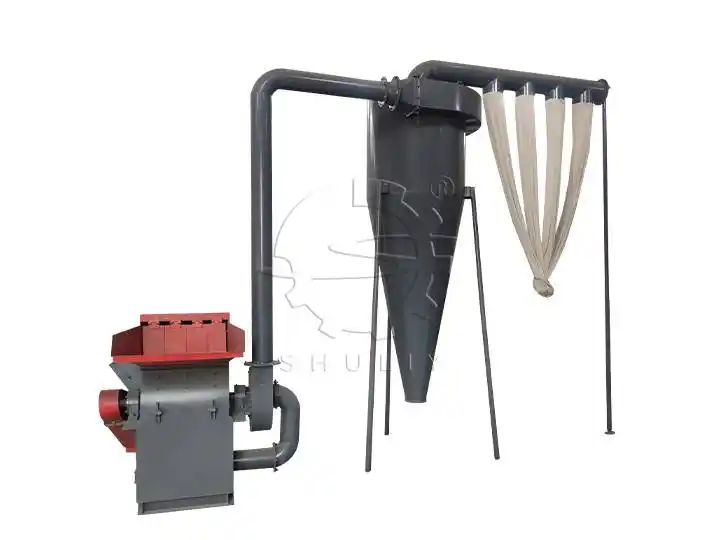

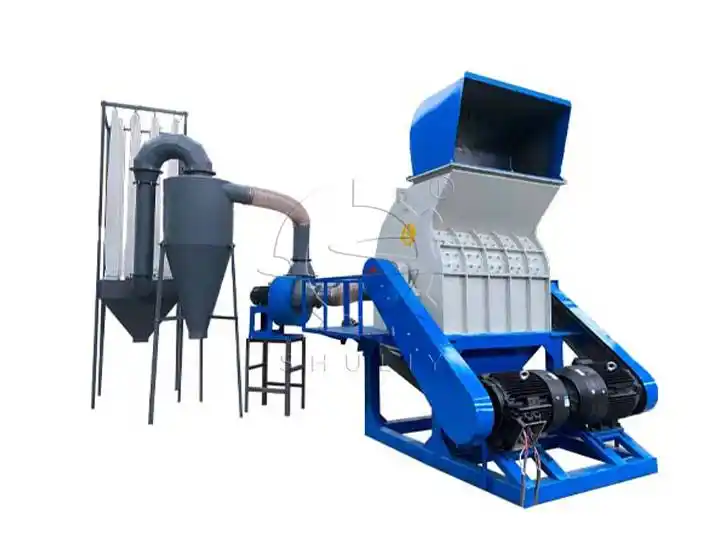

เครื่องโรงสีค้อน
เครื่องโรงสีค้อน
  • Wood materials: logs, wood chips, wood boards, branches, bamboo, poplar, fruit trees, and various other wood materials.
  • Grains: It can effectively grind grains like corn, wheat, sorghum, buckwheat, soybeans, and more, making it valuable for feed mills and food processing industries.
  • Charcoal: raw charcoal, bamboo charcoal, fruit charcoal, coconut shell charcoal, and other types of charcoal, contribute to the production of various charcoal-based products.
  • Fibers: Rice straw, straw, wheat straw, cotton, hemp straw, and similar fibrous materials can be processed efficiently by the hammer mill shredder.
  • Other materials: Apart from the above, the hammer mill can handle a diverse range of materials, such as cardboard boxes, coconut shells, Chinese herbal medicines, and forages, catering to different industries’ specific needs.

ตอนนี้ เรามาเจาะลึกหลักการทำงานของโรงสีค้อนไม้เพื่อดูว่าวัสดุเหล่านี้ได้รับการประมวลผลอย่างไร

เศษไม้
เศษไม้

หลักการทำงานของโรงสีค้อนไม้

โรงสีค้อนไม้ทำงานบนหลักการทำงานที่ตรงไปตรงมาโดยพิจารณาจากแรงกระแทกและการขัดสี เมื่อเครื่องจักรกำลังทำงาน ค้อนหมุนซึ่งโดยทั่วไปทำจากเหล็กที่มีความแข็งแรงสูง จะแกว่งด้วยความเร็วสูงแล้วกระแทกไม้หรือวัสดุอื่น ๆ ที่ป้อนเข้าไปในห้องบด

ไม้หรือวัสดุชีวมวลจะเข้าสู่ห้องบดผ่านถังป้อนด้านบน ในขณะที่ค้อนหมุน พวกมันจะโจมตีวัสดุที่เข้ามาอย่างทรงพลัง และแยกพวกมันออกเป็นชิ้นเล็ก ๆ ขนาดของอนุภาคเอาต์พุตสุดท้ายถูกกำหนดโดยขนาดของรูในตะแกรงหรือตะแกรงที่อยู่ด้านล่างของห้องบด

ในขณะที่กระบวนการดำเนินต่อไป อนุภาคขนาดเล็กจะผ่านตะแกรง ในขณะที่อนุภาคขนาดใหญ่จะยังคงอยู่ภายในห้องเพื่อการบดเพิ่มเติม การหมุนค้อนอย่างต่อเนื่องและการมีอยู่ของตะแกรงทำให้แน่ใจได้ว่ากระบวนการลดขนาดมีการควบคุมและสม่ำเสมอ

หลักการทำงานของโรงสีค้อนไม้นั้นทั้งมีประสิทธิภาพและตรงไปตรงมา มาดูข้อดีหลักๆ ที่ทำให้โรงสีค้อนไม้ของเราแตกต่างจากที่อื่นๆ กันดีกว่า

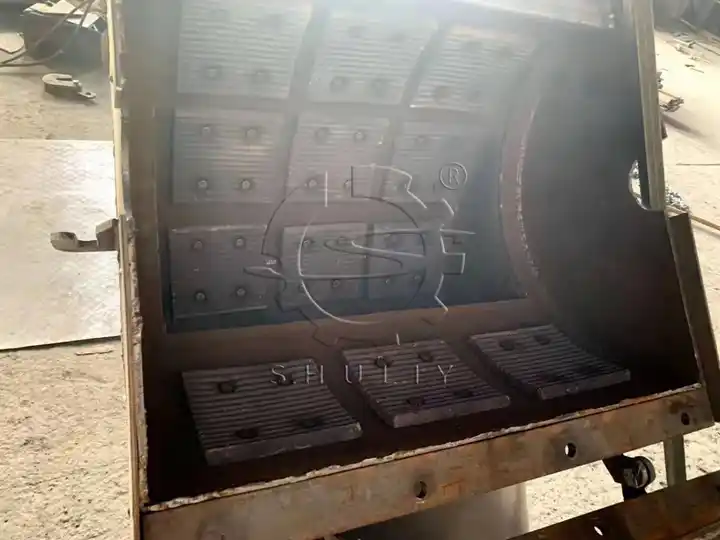

Structure of the wood hammer mill crusher

The hammer-type wood crusher mainly consists of the machine body, rotor system, hammers, screen, feed inlet, discharge outlet, and motor drive system. Its core is the high-speed rotating hammers, which impact, shear, and grind the material. The screen controls the particle size of the output, enabling efficient crushing of various raw materials such as wood, grains, charcoal, and fibers.

Material specifications

Componentวัสดุคำอธิบาย
Body / HousingQ235B SteelWelded thick steel plate,
strong and impact-resistant
Rotor Shaft40Cr Alloy SteelHigh strength,
withstands high-speed
rotation impact
ค้อนAlloy SteelWear-resistant,
impact-resistant,
replaceable
Screen / Discharge ScreenHigh Carbon SteelControls discharge
particle size, durable
Feed / Discharge PortQ235B SteelDurable, easy to
connect with conveyor equipment
Transmission Belt / CouplingRubber Belt /
High-strength Steel Coupling
Transfers power,
absorbs shock
เครื่องยนต์Standard Industrial MotorProvides power,
suitable for required capacity
Support BearingsHigh-quality Rolling BearingsSupports stable rotor operation

ข้อดีที่สำคัญของโรงสีค้อนไม้

Multi-Material Processing

The hammer mill efficiently processes a wide range of materials, not only wood but also straw, waste paper, and coconut shells, making it versatile for different production needs.

Adjustable Output Size

The machine allows users to control the particle size of the output, producing uniform sawdust or wood particles (3–8 mm), suitable for various applications.

Customizable Design

The crusher can be tailored to customer requirements, including feed inlet size, machine dimensions, and optional accessories such as wheels and dust removal systems, ensuring adaptability to different workshops and production layouts.

High-Efficiency Crushing Structure

  • Core system features high-speed rotor and hammers, performing impact, shear, and grinding for efficient material reduction.

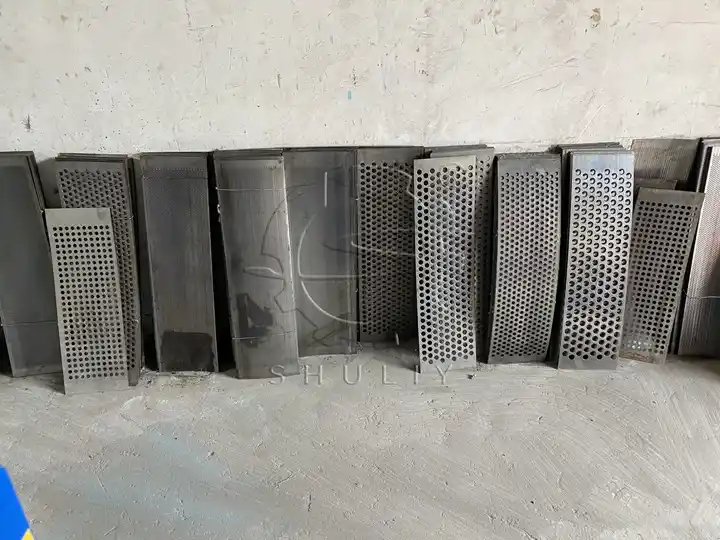

  • Screens control particle size to ensure consistent output.
  • High-capacity fans (7.5–22 kW) combined with cyclone separators enhance dust control.

Durable Material and Construction

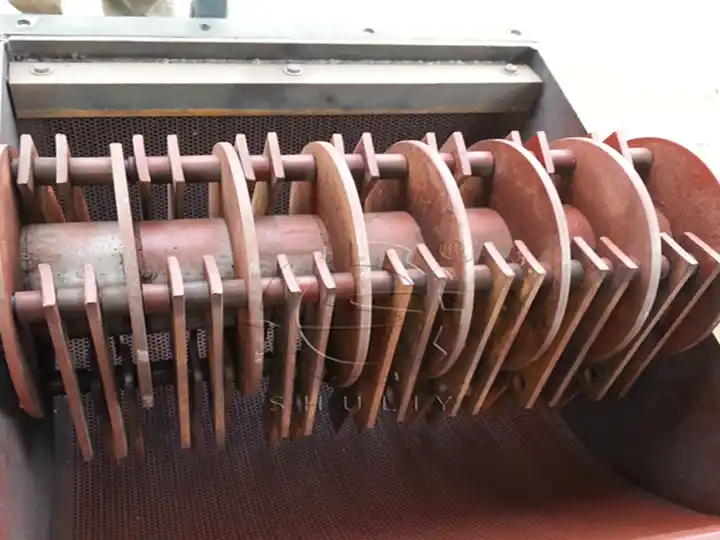

  • Hammers are made of high-hardness, wear-resistant materials for long service life.
  • Sturdy machine body ensures stable, continuous operation even under high-intensity use.

Wide Range of Models and Capacity

Shuliy offers SL-HM60 to SL-HM1300, with capacities from 0.6 to 5 t/h, meeting the needs of small to large-scale wood processing plants.

Energy Saving

Advanced design optimizes energy consumption, maintaining high productivity while reducing operational costs.

Easy Operation and Maintenance

  • Modular design allows easy assembly and maintenance.
  • High-speed, high-output, low-energy operation while maintaining material integrity and uniform particle size improves overall production efficiency.

คุณสมบัติเฉพาะของโรงสีค้อนไม้ของเราให้ประโยชน์มากมายแก่การดำเนินงานของคุณ ต่อไปเราจะให้รายละเอียดเกี่ยวกับข้อมูลจำเพาะที่ทำให้โรงสีค้อนของเราเป็นตัวเลือกที่โดดเด่น

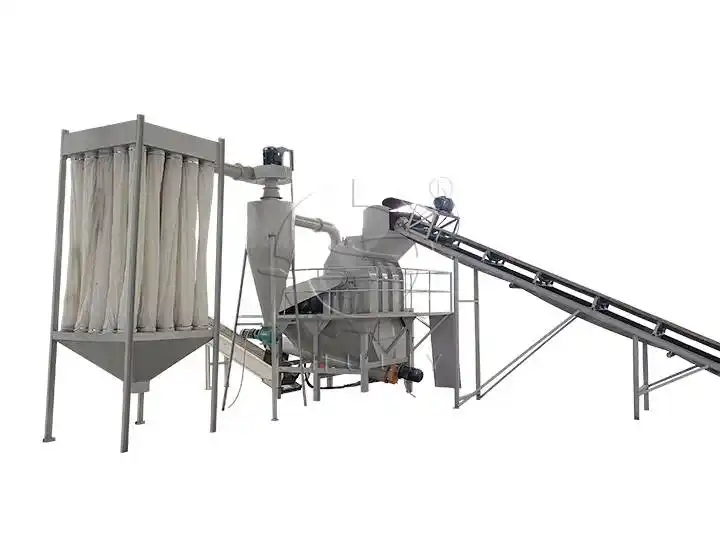

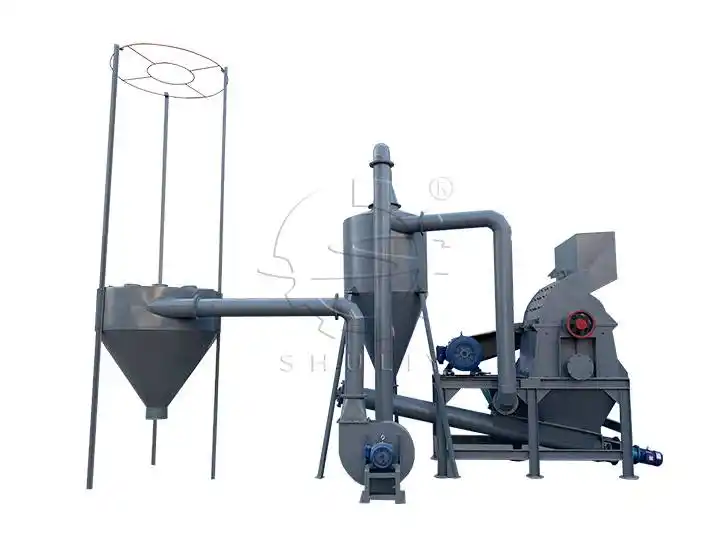

เครื่องทำลายโรงสีค้อนสำหรับธุรกิจ
เครื่องทำลายโรงสีค้อนสำหรับธุรกิจ

ข้อกำหนดโรงสีค้อนไม้

แบบอย่างSL-HM60SL-HM70SL-HM80SL-HM90SL-HM1000SL-HM1300
กำลังไฟ (กิโลวัตต์)223037557590
ค้อน(ชิ้น)30405050105105
พัดลม(กิโลวัตต์) //7.57.51122
เครื่องกำจัดฝุ่น(ชิ้น)55551414
เส้นผ่านศูนย์กลางพายุไซโคลน (ม.)111111
กำลังการผลิต (ตัน/ชม.)0.6-0.81-1.21.2-1.51.5-33-44-5
พารามิเตอร์เครื่องโรงสีค้อน

Notes: The SL-HM60 and SL-HM70 are our top sellers because of their compact size and affordable price, while the SL-HM1300 is the most widely used model in large-scale production lines.

ข้อมูลจำเพาะเหล่านี้ช่วยให้มั่นใจได้ว่าโรงสีค้อนไม้ของเราตรงตามข้อกำหนดด้านการประมวลผลเฉพาะของคุณ แต่คุณจะเลือกเครื่องทำลายโรงสีค้อนที่เหมาะสมได้อย่างไร? มาสำรวจกันต่อไป

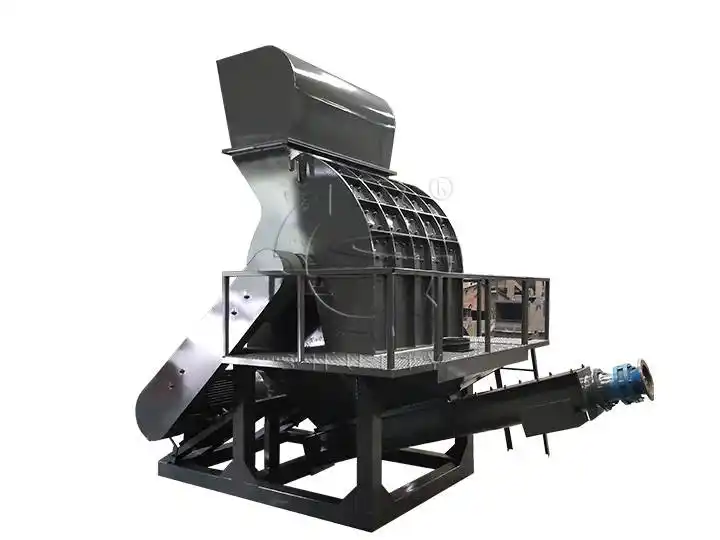

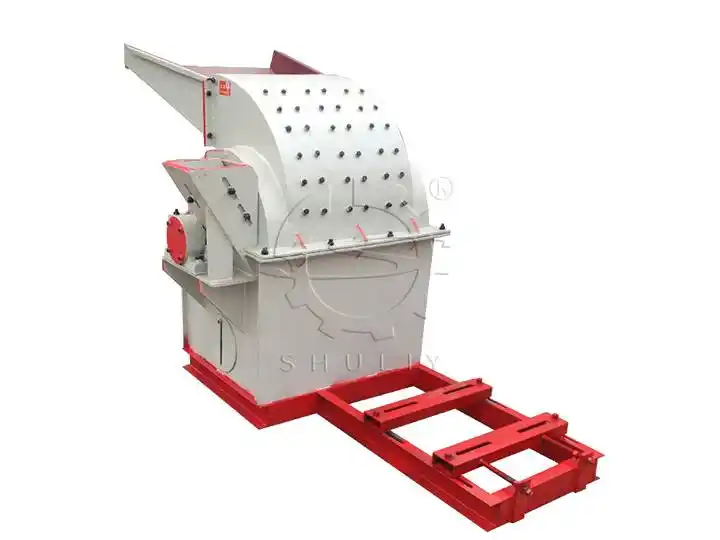

เครื่องทำลายโรงสีค้อน
เครื่องทำลายโรงสีค้อน

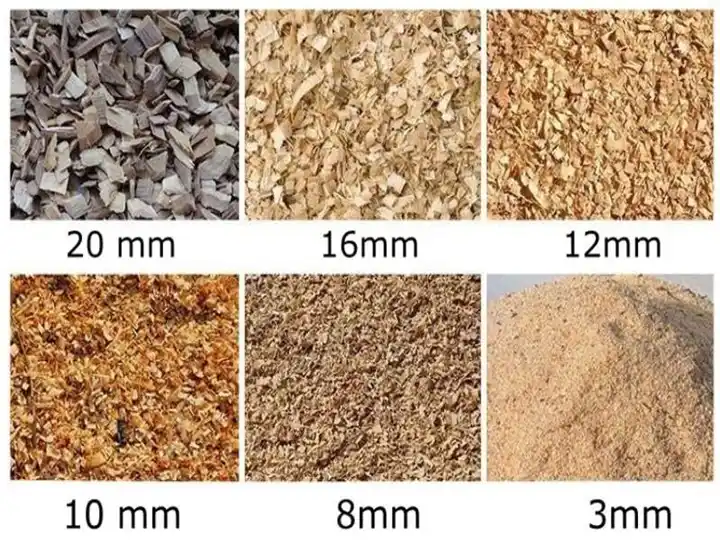

Finished product in various sizes

processing size with the hammer wood crusher
processing size with the hammer wood crusher

วิธีการเลือกเครื่องทำลายโรงสีค้อน?

เมื่อเลือกเครื่องทำลายโรงสีค้อนไม้ ควรพิจารณาปัจจัยสำคัญหลายประการ ขั้นแรก ให้พิจารณาการใช้งานที่ต้องการและประเภทของวัสดุที่คุณจะประมวลผล

จากนั้น ให้พิจารณาข้อกำหนดด้านกำลังการผลิตและเอาต์พุตของเครื่อง ประเมินปริมาณวัสดุที่คุณต้องดำเนินการในแต่ละวัน และเลือกเครื่องทำลายโรงงานแบบค้อนที่มีกำลังการผลิตที่เหมาะสมเพื่อตอบสนองความต้องการในการผลิตของคุณ นอกจากนี้ ควรคำนึงถึงกำลังของเครื่องและข้อมูลจำเพาะของมอเตอร์ด้วย

คุณลักษณะด้านความปลอดภัยเป็นสิ่งสำคัญยิ่งเมื่อเลือกเครื่องทำลายโรงงานแบบค้อน ตรวจสอบให้แน่ใจว่าเครื่องจักรมีกลไกความปลอดภัยที่จำเป็นเพื่อปกป้องผู้ปฏิบัติงานและป้องกันอุบัติเหตุระหว่างการทำงาน อินเตอร์ล็อคนิรภัย ปุ่มหยุดฉุกเฉิน และกล่องป้องกันเป็นตัวอย่างของคุณลักษณะด้านความปลอดภัยที่จำเป็นที่ต้องมองหา

สุดท้ายนี้ ให้พิจารณาการสนับสนุนและบริการหลังการขายที่นำเสนอโดยผู้ผลิต เลือกซัพพลายเออร์ที่มีชื่อเสียง เช่น Shuliy Machinery

การเลือกเครื่องทำลายโรงสีค้อนที่เหมาะสมจะต้องคำนึงถึงปัจจัยต่างๆ สุดท้ายนี้ หากคุณมีคำถามหรือต้องการข้อมูลเพิ่มเติม อย่าลังเลที่จะติดต่อเรา

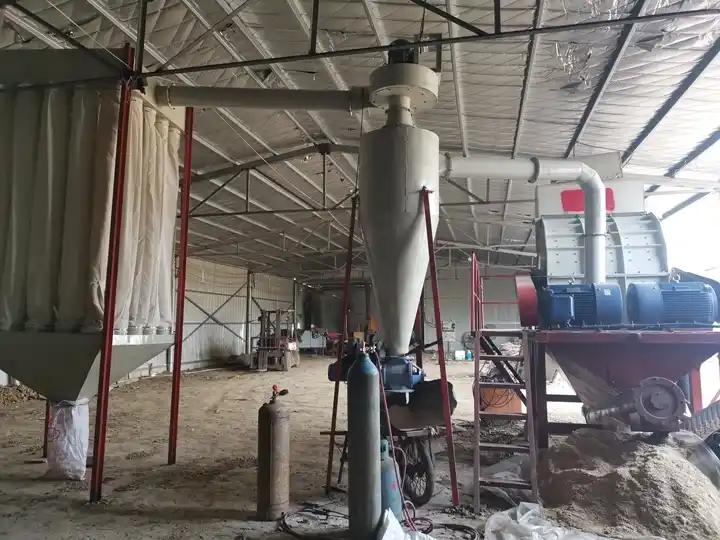

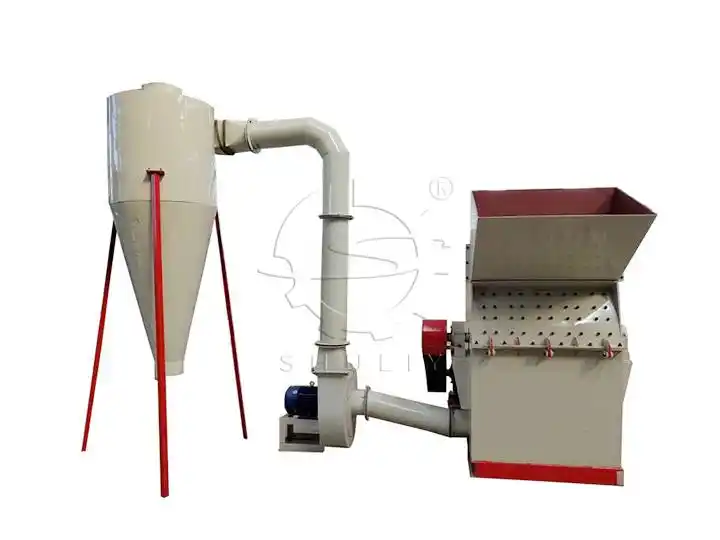

ขายเครื่องทำลายโรงสีค้อน
ขายเครื่องทำลายโรงสีค้อน

Wood hammer mill VS. wood crusher

รายการWood hammer millเครื่องบดไม้
Working PrincipleHigh-speed hammers
impact and grind materials
Blades cut materials into wood chips
Applicable MaterialsWet, hard, and fibrous materialsDry and uniform wood materials
Output SizeFine and adjustable (about 3–8 mm)Coarse (about 2–5 cm)
Energy ConsumptionSlightly higherLower
MaintenanceReplace hammers and screenSharpen or replace blades
AdaptabilityStrong, handles various materialsWeak, may clog with wet materials


Summary: The wood hammer mill is more versatile and ideal for fine crushing of various materials, while the conventional wood crusher is better for cutting dry wood.

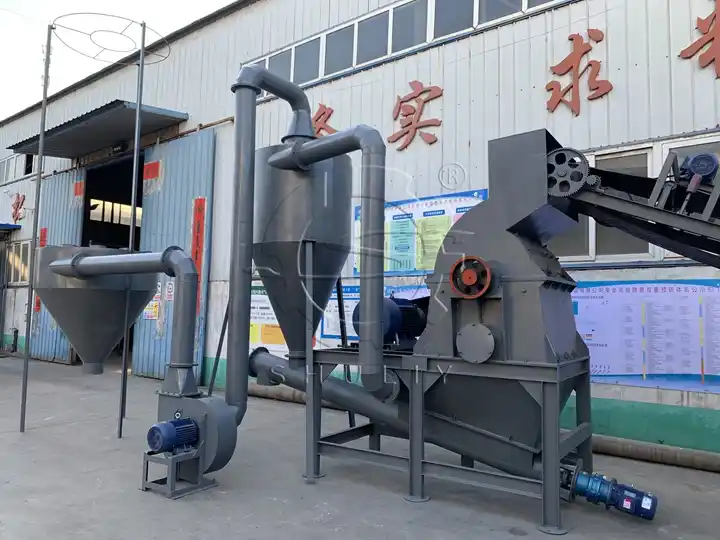

เครื่องบดโรงสีค้อน
เครื่องบดโรงสีค้อน

Applications of hammer-type wood crusher

  • Wood pellet production – as the first step in biomass pellet manufacturing.
  • Charcoal and briquette production – preparing fine wood powder for carbonization.
  • Furniture and board factories – processing offcuts, panels, and waste wood.
  • Agricultural waste recycling – crushing straw, rice husks, and corn stalks.
  • Mushroom cultivation – preparing sawdust substrate for edible fungi.
